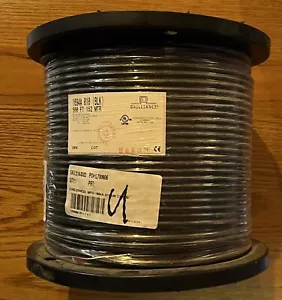

Belden 1694A RG6 Low Loss Serial Digital Coaxial Cable (500', Black) New Sealed

misse-1
(2631)
Seller's other items
Contact seller
US $288.88
as low as $50.13/mo with
Condition:
New
People are checking this out. 7 have added this to their watchlist.
Shipping:
US $66.51 USPS Ground Advantage®.
Located in: Gorman, Texas, United States
Delivery:
Estimated between Thu, Oct 30 and Tue, Nov 4 to 94104
Delivery time is estimated using our proprietary method which is based on the buyer's proximity to the item location, the shipping service selected, the seller's shipping history, and other factors. Delivery times may vary, especially during peak periods.
Returns:
Seller does not accept returns.
Payments:
       .
*No Interest if paid in full in 6 months on $149+. See terms and apply now- for PayPal Credit, opens in a new window or tab
Earn up to 5x points when you use your eBay Mastercard®. Learn moreabout earning points with eBay Mastercard

Shop with confidence

eBay Money Back Guarantee
Get the item you ordered or your money back. Learn moreeBay Money Back Guarantee - opens new window or tab
Seller assumes all responsibility for this listing.
eBay item number:226416038900

Item specifics

Condition
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is ...
Insulation
Material: Gas-Injected FHDPE (Foam High-Density Po
Operating Temperature
-22 to 167°F / -30 to 75°C
Conductor DC Resistance
DCR @ 68°F / 20°C (Ohm/1000' [304.8 m]): 6.4
Compliance
NEC/(UL) Specification: CMR <br>CEC/C(UL) Specifi
Max. Recommended Pulling Tension
69 lb / 31.3 kg
Plenum/Non-Plenum
Non-Plenum
Min. Bend Radius
Minor Axis: 2.75" / 7 cm
Velocity of Propagation
0.82
Outer Shield DC Resistance
DCR @ 68°F / 20°C (Ohm/1000' [304.8 m]): 2.8
Delay
(ns/1' [0.3 m]): 1.240
Weight
24 lb / 10.9 kg
Inductance
(µH/1' [0.3 m]): 0.106
Type
Coaxial Cable
Length
500' / 152 m
Minimum Return Loss
at Start Frequency of 5 MHz: <br>Stop Frequency:
Operating Voltage
UL: 300 V, RMS
Outer Shield
Layer 1: <br>Outer Shield Trade Name: Duofoil <b, Polyester Tape <br>Coverage: 100% <br> <br>Laye
Outer Jacket Material
PVC (Polyvinyl Chloride)
Capacitance
(pF/1' [0.3 m]): 16.2
Attenuation
Frequency in MHz, Attenuation dB 100' / 30.5 m <br>1.000, 0.240 <br>3.580, 0.440 <br>5.000, 0.520 <br>6.000, 0.570 <br>7.000, 0.610 <br>10.000, 0.710 <br>12.000, 0.780 <br>25.000, 1.080 <br>67.500, 1.650 <br>71.500, 1.690 <br>88.500, 1.860 <br>100.000, 1.950 <br>135.000, 2.240 <br>143.000, 2.300 <br>180.000, 2.570 <br>270.000, 3.170 <br>360.000, 3.690 <br>540.000, 4.600 <br>720.000, 5.380 <br>750.000, 5.500 <br>1000.000, 6.420 <br>1500.000, 7.990 <br>2000.000, 9.370 <br>2250.000, 10.010 <br>3000.000, 11.780 <br>4500.000, 14.920
UL Temperature Rating
167°F / 75°C
Conductor
Coax #: 1 <br>AWG: 18 <br>Stranding: Solid <br>
Suitability
Indoor
UPC
0612825358169
Sheath Color
Black
Insulation Material
Gas Injected Foam HDPE
Brand
Belden
Wire Style
Solid
Current Rating
401-500 A
Conductor Material
Copper
MPN
1694A-500-BLACK
Item Length
500 ft
Impedance
75 Ω
Wire Gauge
19-18 AWG (0.9-1 mm)
Category

About this product

Product Identifiers

Brand
Belden
MPN
1694A-500-BLACK
GTIN
0612825358169
UPC
0612825358169
eBay Product ID (ePID)
2092057881

Product Key Features

Sheath Color
Black
Conductor Material
Copper
Insulation Material
Gas Injected Foam HDPE
Impedance
75 Ω
Wire Gauge
19-18 AWG (0.9-1 mm)
Wire Style
Solid
Current Rating
401-500 A

Dimensions

Item Length
500 ft
