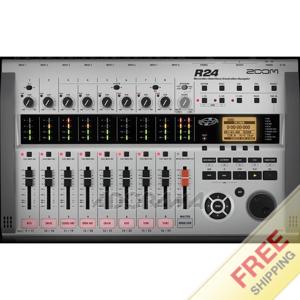

Zoom R24 Recorder, Recording of 8 Playback of 24-Tracks #ZR24
Item Includes
| Zoom SD Memory Card (1GB) - USB Memory (2GB) - AC Adapter (AD-14) - USB Cable - Zoom Warranty |
Description
| The R24 Digital Recorder, Sampler, USB Interface and DAW Controller - Combines a 24-track recorder, audio interface control surface capability, drum machine and sampler functions. The Zoom R24 is great for live and studio applications. Simultaneous 8-track capability and Playback up to 24 tracks using its 16/24 bit linear WAV format and 44.1 or 48 kHz sampling rate. The R24 functions as an audio interface enabling direct input of sound to a computer. Support for high quality 24-bit/96kHz encoding ensures great sound. Eight input channels and two output channels can be used simultaneously. If you use the sampling rate of 44.1kHz, the internal DSP effects of the R24 are also usable on your computer track. A dedicated control lets you adjust the mixing balance between the DAW playback sound and the direct sound for monitoring. Transport and mixing operations of the DAW software can be controlled using the R24. This gives you greater control and a better feel for mixing. In Mackie control emulation mode, major DAW applications such as Cubase, Logic and Sonar are supported. Specify a range from any track to use as loop material. Then play them in real time with trigger playback using the drum pads, or use the onboard sequencer to build the loop structure for a song. Recording on another track while playing loops is also possible, seamlessly blending the recorder and sampler functions. |
Features
 | Record 8 tracks simultaneously with 24 track playback |
| Audio interface with 8-in/2-out capability |
| Control surface for all major DAW functions |
| Pad sampler with 24 voices (8 pads x 3 banks) |
| Drum machine with 10 kits and velocity sensitive pads |
| Large 1.9 inch LCD shows waveform information |
| High sensitivity stereo mics built in |
| 8 combination XLR/phono input jacks |
| Hi-Z compatible input |
| 6-channel simultaneous phantom power supply capability |
| 135 DSP effects including guitar amp simulations |
| Support for SDHC cards for up to 32 GB |
| USB based sync capability for two R24 units allows 16-track simultaneous recording and 48-track simultaneous playback |
| Runs for about 4 hours on six AA batteries |
| Sleek design only 35 mm high |
Specifications
| Simultaneous Recording Tracks | 8 |
| Simultaneous Playback Tracks | 24 |
| Recording Data Format | 44.1/48kHz, 16/24bit WAV |
| Maximum Recordable Time | 200 minutes / GB (44.1kHz 16-bit, mono tracks) |
| Projects | 1,000 |
| Markers | 100 / Project |
| Locator | Hours / Min. / Sec. / msec or Bars / Beats / Ticks |
| File Editing | Divide, Trim |
| Other Functions | Punch-In / Out (Manual, Automatic), Bounce, A-B Repeat, Undo / Redo, Metronome |
| Input Channels | 8 |
| Output Channels | 2 |
| Quantization | 24bit |
| Sampling Frequency | 44.1, 48, 88.2, 96kHz |
| Faders | 9 |
| Level Meters | 4-Segment LED |
| Track Parameters | 3-Band Equalizer, Pan (Balance), Effect Send x 2, Invert |
| Stereo Links Track pairs | 1/2 to 23/24 selectable |
| Algorithms | 9 (CLEAN, DISTORTION, ACO / BASS SIM, BASS, MIC, DUAL MIC, STEREO, 8 x COMP EQ, MASTERING) |
| Effects Types | 150 |
| Modules | 7 for Insert, 2 for Send / Return |
| Patches | 330 for Insert, 60 for Send / Return |
| Tuner | Chromatic, Guitar, Bass, Open A/D/E/G, D modal |
| Playback Data Format | 44.1/48kHz, 16/24bit WAV |
| Voices | 24 |
| Editing Functions | Trim, Time-stretch |
| Voices | 8 |
| Sound Format | 16-bit Linear PCM |
| Drum Kits | 10 |
| Pads | 8 (velocity-sensitive) |
| Precision | 48 PPQN |
| Rhythm Patterns | 511/project |
| Patterns | 511 (472 factory, 39 blank) / Project |
| Beat | 1/4 - 8/4 |
| Tempo | 40.0 - 250.0 BPM |
| Recording Media | SD Card (16MB-2GB), SDHC Card (4-32GB) |
| A/D Conversion | 96kHz 24bit delta-sigma ADC |
| D/A Conversion | 96kHz 24bit delta-sigma DAC |
| Display | 128 x 64 pixel LCD (with backlight) |
| Inputs | 8 x XLR-1/4" Phone Combo Jack / Input Impedance |
| Built-in microphones | Omnidirectional condenser microphones Gain: -50dBm to +4dBm continuously variable |
| Phantom Power Supply | 48V / 24V |
| Master Output | 1/4" TRS Phone (balanced) / Output Impedance: 1kohm / Rated Output Level: +4dBm |
| Headphones Output | 1/4'' Stereo Phone Jack, 20mW x 2 (at 32ohm load) |
| USB | [B type (USB2.0 High-Speed compatible)] Audio Interface |
| Power Requirements | AC adaptor (DC5V/1A/center positive) or AA size (LR6) battery x6 |
| Battery Life | 4.5 hours (with backlight on and phantom power off) |
| Dimensions (W x D x H) | 376 x 237.1 x 52.2mm / 14.80 x 9.33 x 2.06in |
| Weight | 2.8lbs / 1.3kg |
