30A 48V LCD Display Solar PWM Battery Charge Regulator

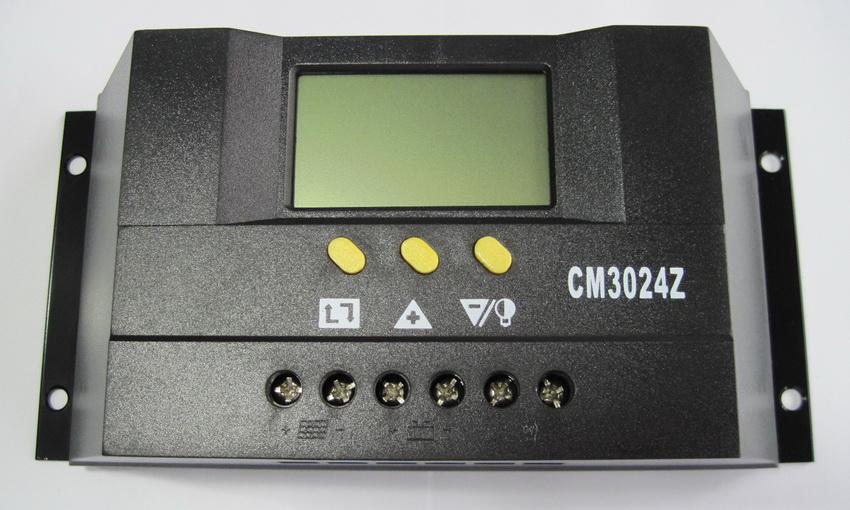

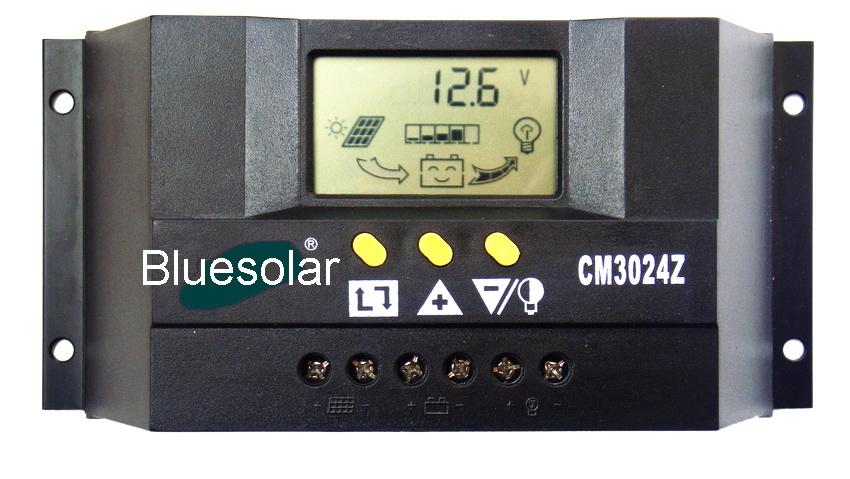

" this picture is 48V 30A, other picture is 12V 30A "



Specifications:

- Rated Voltage: 48V

- Rated Current : 30A

- Max Input Solar Panel Power:  1600W

- Open Voltage of Solar Panel :  ≤ 100V

- Over-charging Protection :  55.2 V

- Low Voltage Disconnection / LVD:  42.8 V

- Low Voltage Reconnected / LVR:   50.4 V

- No Load Loss: ≤ 30mA

- Loop Voltage Drop:  ≤170mV

- Charging Mode:  PWM mode

- Temperature Compensation: -4mV / Cell / °C

- Installation Cable area:  ≤ 5 # AWG (16 mm2 )

- Operating Temperature:  -10 ~ 60 °C

- Storage Temperature:  -30 ~ 70 °C

- Humidity Requirements:  ≤ 90% , no condensation

- Dimensions:  90 x 188 x 48 mm

- Mounting Hole Spacing:  60 x 178 --- Φ5 mm

- Weight :  370g

- Colour:   Black



Features:

    CM series controller is a kind of intelligent and multifunctional solar charge controller. These serial products adopt customized LCD display screen, which makes the operation on the interface rather convenient. All the controlling parameters can be reset flexibly to satisfy your different needs. CM series controller has the following features.

- Visual LCD graphic symbol

- Brief key operation

- Grade auto switch of system voltage

- Intelligent PWM Charging Mode

- Auto temperature compensation

- Adjustable charging & discharging parameter

- Settable working modes of loads

- Accumulative function of charging & discharging AH

- Remote Monitoring Function

- Protection for battery back discharging

- Protection for battery low voltage

- Overloading & short-circuit protection

- Battery reversed protection

- Delayed auto restart after overloading protection

- CE & RoHS Certification

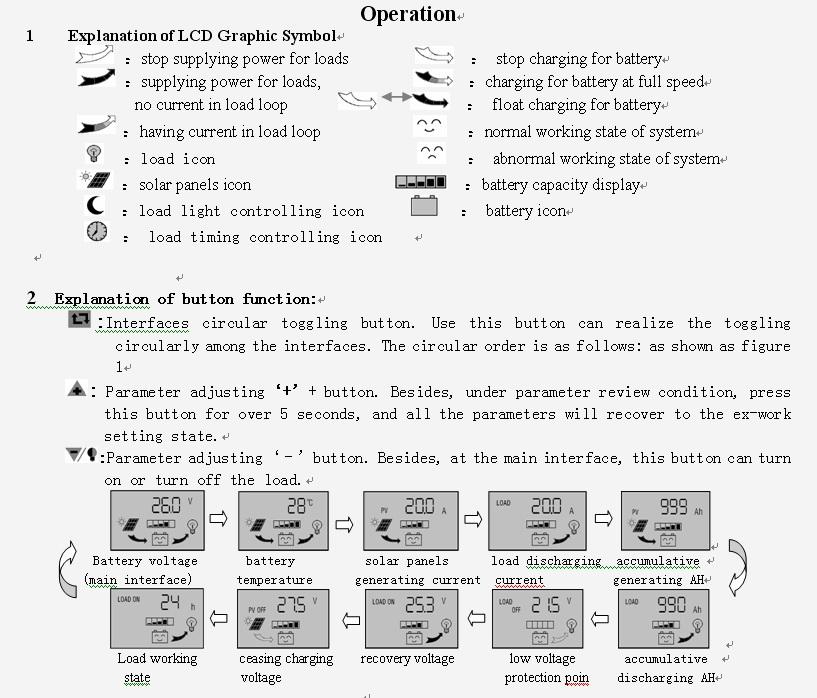

Intelligent Solar Charge Controller User’s Manual
Please read this instruction carefully before using it

Installation Explanation：
Get ready the related tools & cables. We suggest you choose the appropriate cables to ensure the current density ﹤4A/mm2 and this is good for reducing cable voltage drop. Recommendation：30A using 10mm2 cable。50A using 16 mm2 cable.
①  Check whether installation place accords with the relative safety rules. Please avoid installing and using the controller under the following conditions: wet, dusty places or places with flammable and
explosive gases.
② Install the controller at the vertical plane. Please
refer to chapter 5 for more detailed info about the
spacing between the installing holes. In order to
make the controller have good thermal dissipation,
please spare 10cm above & below the controller.
③ As shown as the right figure, connect the loads, battery and solar panels with the controller in order. Pay attention to connect the loads, battery and solar panels right.
③ Plug the external thermal sensor into the interface of the thermal-sensor on the left
of the controller.

  ⑤ If you need to use the remote monitoring function, please plug one side of the attached communication cable into the communication port which is on the right of the controller, and connect the other side with computer.


Disassemble: To avoid the accident, please dismantle the solar panels, battery, loads from the controller in order.
Attention: Connecting the battery reversed will not damage the controller, but will cause safety risk on your loads.













Packing Included

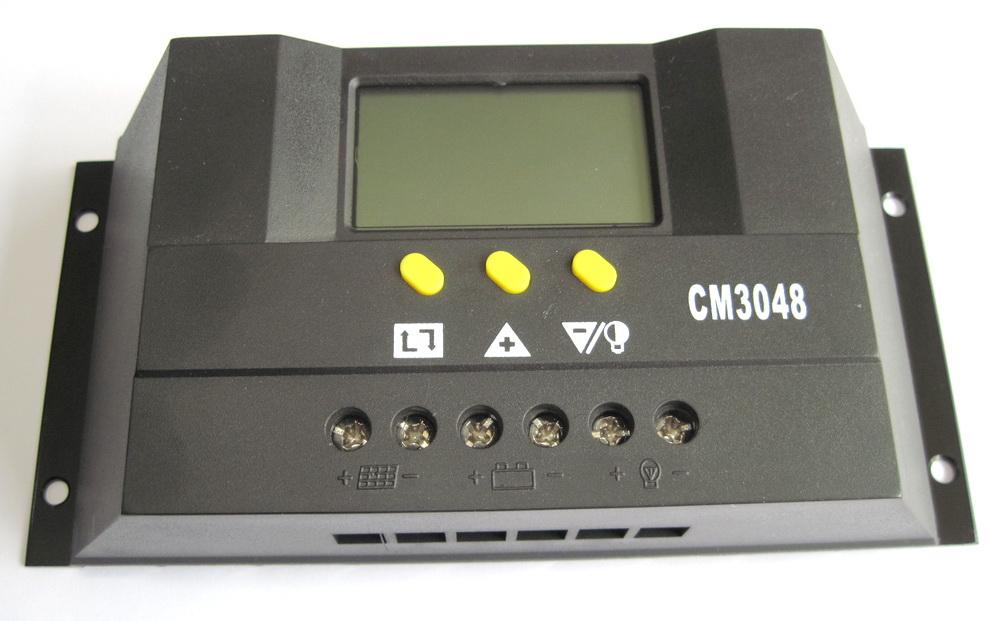

  • 1 x 30A 48V CM3048 Solar PWM Regulator
  • 1 x Thermoscope
  • 1 x Instruction manual
