MM63 - All Steel Modular BioDiesel Processor Plans

The information will show you how to build a high quality industrial grade modular biodiesel processor using all steel materials for safety. This processor design will produce ASTM High Grade BioDiesel using commonly accepted commercial techniques and chemical formulas.

Build the components you need to meet your fuel requirements. You can start with the basic processor and grow into an entire system!!

All this from a 20 year Industrial Process Engineer!

These construction plans completely eliminate any guess work or fancy math.

This is a "Small Farm"  sized unit.  Production capacity from 45 to 400 gallons per day.

It should be noted that while it is possible, making 400 gallons a day in this sized processor is NOT practical.
If you need to make these larger volumes, contact us for a much larger system you can still build yourself.

This is a serious unit not a water heater or dangerous plastic tank.

The plans also include support to help make sure you are successful.  What kind of support?  We will hold your hand and walk you through the process if that's what it takes to make sure you do it right. We do this every day.

Why am I the only seller who offers support for a set of plans? Because the plans are so well thought out that I get very few requests for support.

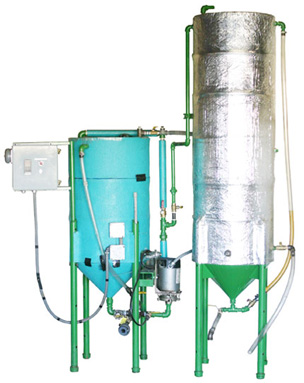

All Steel Modular BioDiesel Processor
  • Production Capacity: 25 to 50 Gallons Per Batch (2 Hours)
  • Reactor Volume: 63 Gallons
  • Settling Tank Volume: 117 Gallons
  • Wash Tank Volume: 55 Gallons
  • Dry Tank Volume: 75 Gallons
  • Cost Per Gallon: $0.75 to $0.95 (2007)
  • Electrical: 120 / 240 Optional
  • Controls: Automatic Temperature Control
  • Tools Required: Mig or Tig welder, ability to cut sheet metal.
  • Skills Required: Proficient at welding, basic metal working skills, drilling holes, screwing pipes together, basic electrical skills.
  • Materials: Steel, Bronze Valves
  • Construction Cost: $300 to $2000 depending on options
  • Construction Time: 2 to 3 Weeks.
  • Feedstock: Waste Vegetable Oil or Tallow
Definitely the most complete and professional set of BioDiesel Processor Construction plans available anywhere in the world!

The 3D computer generated graphics explaining each step of the construction process are amazing!
Bonus Material:

- How to make a simple $10 tool for bending the cone and making it look good!

- All about titration supplies!
(This section alone will save you the money you paid for these plans)
You get over 110 pages filled with detailed drawings and pipe-by-pipe instructions describing each step of the construction process for each component of the Biodiesel Processing System. This isn’t just a Biodiesel Reactor, although you could build just that part if you wanted, these plans describe how to make an entire Biodiesel Processing System that will produce ASTM Grade high quality fuel.
A complete materials list
  • Description of each item
  • Photo of each item
  • Explanation of use when not obvious
  • Suggestions for alternatives
  • Links and suggestions where to acquire each item


Step by step directions for assembly complete with,

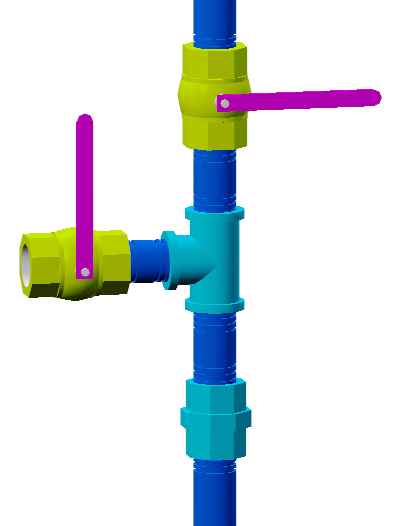

  • Professionally drawn Full Color 3D Diagrams
  • Labeled Cad Drawings and Diagrams




Supplementary information

  • All about the Chemicals including MSDS Sheets
  • Save Money on Titration supplies and glass-ware
  • Links to the best biodiesel resources available on the internet

These plans will show you how to build a real biodiesel processing system.  Not just a biodiesel processor that leaves you hanging and wondering what to do.  This is a complete system! And it comes with support!

What's Included:

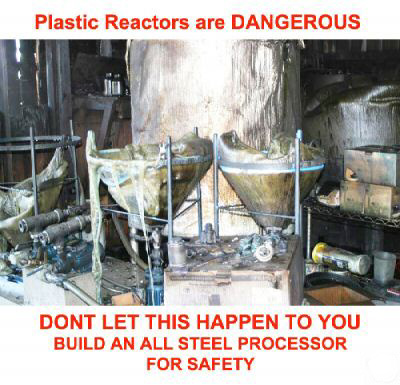

*Reactor Plans - All steel construction for safety.  NEVER USE A PLASTIC REACTOR. They are dangerous.

*Wash Tank Plans - Including automated temperature control

*Dry Tank Plans - Reduce the time it takes to dry your biodiesel from days or weeks to just an hour or two.

*Titration Supplies - How to save money on titration supplies. (This section alone will pay for these plans)   Have you seen some of the titration kits offered on ebay?  What a joke!  I have seen titration kits for $60, $80 and $100 and more!  People sure get taken advantage of.   My plans show you how to put together a practical titration kit for just a few dollars! I can't believe people pay the money they do for someone to sell them a couple of 30 cent syringes and a few other gizmos.

*Bonus Material

- How to make a $10 tool to bend up your cone and make it look good!
- Electrical diagrams

If you have questions, please feel free to email me. My advice on making biodiesel is always free. For more information, check out: http://www.murphysmachines.com/biodiesel_processor.html

 YOU WILL RECEIVE A LINK TO THE PLANS WHERE YOU CAN DOWNLOAD AND PRINT THEM AS OFTEN AS YOU WISH FOR 90 DAYS.
  (time restriction is not strictly enforced because its more important to us that you complete the project)
- Personal notes and suggestions to save you time and money!
This Ebay Auction is for online access only. A printed version is available at murphysmachines.com

IF YOU WANT TO CHECK MY REPUTATION,
GOOGLE US OR CHECK OUT THE COMMENTS IN MY EBAY FEEDBACK!!!
