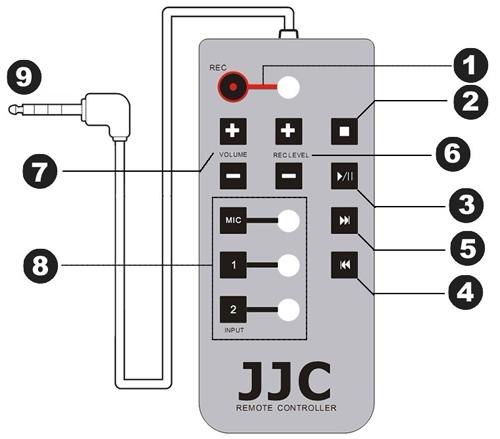

[REC] button is used to make setting of recording
standby and putting a mark.
Indicator turns red during recording and blinks
during recording standby.
②[STOP] button
Stop
operation of recording and playback.
③[PLAY/PAUSE] button
Make
operation of recording and playback, also use for a
temporary stop and re-start operation.
④[REW] button
Make
selections of rewinding and files.
⑤[FF] button
Make
selections of fast forwarding and files.
⑥RECLEVEL
[+/-]
Adjust recording level.
⑦VOLUME [+/-]
Adjust recording level.
⑧INPUT [MIC][1][2] buttons and INPUT
Indicator(Green, Yellow, Red)
Make
selections of input source. The indicator of the
selected input button turns green light on.
*Button operation in detail: see the main unit
operation manual.
⑨Remote commander jack
Plug
the jack in to the remote commander's jack.
n SAFETY
PRECAUTION / Usage precaution
The
SR-RC4 is a precision instrument. Do not exert
undue pressure on the switches and other
controls. Also take not to drop the unit, and do
not subject it to shock or excessive pressure.
Please do not pull the cable and the jack strongly.
If
you use the SR-RC4 in following environment, that
may cause failure or troubles to the SR-RC4.
Please avoid using there.
l Extremely
hot or cold temperature
l
Close to a heater, oven, radiator (heat source)
lVery
high humidity, closer to shower or steam (covered
with drops)
l Sandy
or dusty
Avoid pouring and liquid (water, juice, or alcohol)
and inserting.
How to take care of SR-RC4
Use
a soft, dry cloth to clean the SR-RC4. If
necessary, slightly moisten the cloth. Do not use
abrasive cleanser, wax, or solvents (such as paint
thinner of cleaning alcohol).
