Multi Coin Acceptor Selector CH-926&Timer control board









We are professional manufacture of coin selector , coin acceptor , and LCD counter  company .If you demand a large quantity , please feel free to let me know .We can cooperate in B2B model.

This is Model number : CH-926+CH-15

 Please notice :

The item is in UK , you will receive them in 3~5 work days by Royal mail!!

 We also have model no. CH-922~CH-928 , that can accept up to 2~8 different kinds ofcoins.if you demand different types of them , you can also Visit My eBay Store: chowhe electronics




About Coin selector



Description:

CH-926 is a multi coin selector, can accept up to 6 kinds of different coins at the same time. This type of coin selector is widely used in Vending machine, Arcade Game, Message chair, and other self–management system. CH-926 is mainly based on material, weight and size to identify coins. We use the most up to date algorithm to design software. Therefore, CH-926 is very stable and accurate even when environment changes such as temperature, and humidity etc… In order to increase the accuracy, we suggest different version of coins use different channel to set up.


Features:

(1)Capable of accepting all worldwide Coins and Tokens.

(2)Intelligent CPU software control, and high accuracy .

(3)Self-programming without PC.

(4)Accept 1~6 different kinds of coins at the same time.

(5)Free to set up pulses' output.

(6)Prevent not only electric shock but also electromagnetic interference.

(7)Automatic self-test for problems.


Specifications:

Coin diameter15mm~32mm
Coin thickness1.2mm~3.8mm
Atmospheric pressure86Kpa—106Kpa
Accuracy rate of identification99.5%
Working voltageDC +12V ±10%
Working current65mA ±5%
Working humidity≤95%
Signal outputpulse
Speed≤0.6s




User Guide:


The Process of Setup for Parameters

(1)Press the "Add" and "minus" buttons at the same time for about three

    seconds,then the letter "A" will appear from the LED display.

(2)Press the "setup" button once, and the letter "E" will appear.

    Next,us the buttons to choose how many kinds of coins you

    would like to use; then press the"setup" button again to finish.

(3)The letter "H" will appear after pressing the button. Use the

    "Add" and "minus"buttons to choose how many samples you

    would like to insert later. Next press the"setup" button again to finish.

(4)The letter "P" will appear after pressing the button. Use the

    "Add" and "minus" buttons to choose the amount of output's

    signals/pulses you want. The quantity limited is 50 times.

    Next, press the "setup" button to finish.

(5)The letter "F" will appear after pressing the button. Use the

    "Add" and "minus" buttons to choose accuracy. The value

    is from 1~30, and 1 is the most accurate. Normally, 5~10 will be fine.

    Next, press the "setup" button to finish.

(6)So far, you have successfully set up the first coin. please repeat all

    above procedures until you have set up all the coins. The letter "A"

    will appear again after all above procedures are finished.

(7)Press the "setup" button, and the letter "E" will appear.

    Finally, turn off and turn on the power. The setup will be stored.

 You can start sampling after the setup is finished. Please choose at least 20 coins. The sampling process will affect the accuracy of coin selector.



Sampling

(1)Press the "setup" button, then letter "A" will appear from the

    LED display.

(2)Press the "setup" button again, then letter "A1" will appear.

    Next, start to insert sample coins. The LED display will show how

    many coins you insert. The letter "A1" will appear again after finished.

(3)Press the "setup" button again, then the letter "A2" will appear.

    Next, Start to sample 2nd coin, and repeat No. 1 and No. 2

    until all the coins are set up .

(4)After finished the sampling, press the "setup" button.

    The letter "A"will appear, then turn off and turn on the power.

    Now you can start to use it.



Connections' manual






FAQ

Coins can't pass through

(1)Check if the connection is correct or poor connection.

(2)Check if sampling is appropriate.

(3)Check if there is something stuck inside.

Can't identify outputs

(1)Check if 2 way switches -NO. NC.- are correct.

(2)Check if Singal wire is connected correctly .

(3)Check if there is pull-up resistor with signal wire(not allowed).

(4)Check if there is something stuck on the channel where the coins pass out.

Coins can not pass smoothly

(1)Check if the parameter is set up appropriately.

(2)Check the accuracy switch

(3)Check if there is something stuck on the channel where the coins pass out.


Name and Function



1.LED light-The light of indicidation.

2.4pin Socket

3.Two way switch-signal output NO. or NC.

4.Three way switch-Output signal-fast: 20ms , medium: 50ms , slow: 100ms

5.2pin Socket-Electromagnetic valve DC 12V

6.“Setup” button

7.LED display

8.“Add” button-Plus "+" value

9.“Minus “button-Minus “-” value

10.Coin slot

11.Press-button for removal of blocked coin

12.Return slot of Coin

13.Position of electromagnetic strobe


About Timer control board

 Description:

*Newest version of software!!

*This is used for power supply time control.

*Can be used with a coin acceptor or other devices that can

  output pulse signals.and you can set up for what values to start your machine!!

*Suitable for any kinds of automatic control devices such as gaming machines,

  massage chairs,shoe polishers,washing machines,chargers,dryers,and PCs.


Features:

(1)Controls electrical devices ( TV, Massage chair..) power.

(2)Suitable for public place location and most of electric device control,

    for example:PCs,washing machines,dryers,massage chairs,chargers,etc.

(3)AC 1250W/DC 500W electrical relay capacity.

(4)Digital timer: rate adjustable by owner through three simple push button switch.

(5)The time can be set by seconds or by minutes.

    maximum time : there are 2 version of software

   •99:00 (minutes:seconds) or •99:00 (hours:minutes)

(6)Control  time by seconds-minutes or  minutes-hours.

(7)Accumulate time when signal inputs.

(8)Timer control board with coin acceptor operates with 12V DC power.and has

    the LED to show the Time left.


Specifications:

The timer control board for any electrical load does not exceed the following:

•DC 30V,AC 250V,Current 7A

•DC 28V,AC 250V,Current 5A

•Size:91.0mm X 54.30mm

Unit Ship Weight:0.15kg

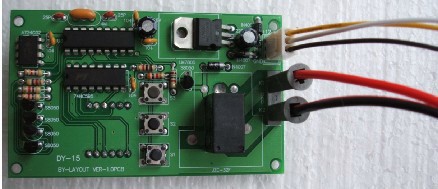

User Guide:



Manual

(1)Power wire : Red wire +12V , black wire 0V(ground).



(2)Signal input : white wire connect to coin acceptor's output or other devices output.


(3)Connect K1 K2 wires to your devices to control.



(4)Set up the time and price for machine to work by pushing buttons s1(+), s2(-),

    and s3(setup).


(5)Maximum time can reach up to 99:00.

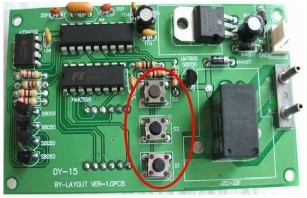

Setup process:

(1)Press S3,into time setup mode,then use s1(+),s2(-),buttons to set up

    time as you need.


(2)Press S3 for 5 seconds,into price setup mode,then use s1(+),s2(-) to

    setup up the price value as you need.


(3)For example,If you are using 10cent,20cent and 50cent coins .we can

    setup with coin acceptor output as 1,2 and 5 pulses.then set up the time

    (say 10 minutes) and price (say value 5 ),then when you insert coins and

    reach total amount 50 cents,the timer board will allow your machine to

    run for 10 minutes.


Notice:

Normally we will ship out 99:00 (minutes:seconds) version.

If you require maximum time 99:00 (hours: minutes) version.

Please let us know before we ship it.
