Mini DVR  808 #16 V2 Car Key Chain Micro Camera Real HD 720P Pocket Camcorder

808 #16  $38.99

808 #16V2 Lens A  $40.99

#16V2 Lens A+4GB  $46.99

#16V2 Lens A+8GB  $49.99

#16V2 Lens A+16GB  $55.99

#16V2 Lens A+32GB  $66.99

808 #16V2 Lens B $40.99

#16V2 Lens B+4GB  $46.99

#16V2 Lens B+8GB  $49.99

#16V2 Lens B+16GB  $55.99

#16V2 Lens B+32GB  $66.99

FIRST  THING YOU NEED TO KNOW BEFORE YOUR BIDDING OR PURCHASE:

You are  buying it from China. The item will be shipped by airmail. It normally takes 2  to 3 weeks transit time to USA, United Kingdom and some European countries. For  other countries, it may need 4-6 weeks to deliver the parcel. It may take longer  time if there is abnormal weather condition or customs control. If you can not  wait that long, please contact us before bidding or purchase. We can also  provide faster shipping method but of course at higher cost.

Basic Specifications:

• 808 Car Key  Chain Micro Camera, identified by Chuck Lohr’s web site as #16. Now the brand new version  #16V2. The new version added TV output (video only) as required by  many users. We also offer different lens options and other accessories  separately, please check our ebay store.
  　
• This package will use a new lens (we call it Lens B).  With IR filter at front, the lens itself will look a little red. It got  around 13% wider angle of view than the original one (Lens A).
  　
• 1/4” CMOS WXGA  HD Sensor / H.264/AVC1 DSP / 512M DDR2
• Rechargeable  LIPO Battery (250mah), with Battery Charger Manage IC
• Video: 720P HD  H.264/AVC1 video codec, 1280 x 720 30fps .mov
• Photo: JPG  1280*960 (no degrading by  upsizing to interpolated "5 megapixel" size)
• microSD card  slot, supports up to 32GB (memory card  not included), suggest using Class 4 or above.
  　
• USB2.0, plug  and play, easy connection with computers, no driver needed.
• Super mini  size, only around 50mm (L) x 32mm (W) x13mm (H)
• Super  light-weighted: only approx 17g!
• Multifunctioned,  you can use it as a mini DVR, a camera, a webcam, a removable USB drive.

What’s special about 808 #16 camera?

1. A connector  added for the internal battery, making it changeable by users who don’t like  soldering. You don’t have to throw your camera away when the battery dies.  You just need a new battery and change it!

2. A connector  added to the lens/sensor module, make it possible to replace or upgrade it  when new module's available.

3. New Lens and  totally new circuit board design. You will see below improvements in video:

   - Overall  sharpness: improved

   - White  balance control / color shifting issue: improved

   - Saturation  / and contrast boost issue: colors look much more natural now

   - Darker  corner/edge vignetting issue: improved

4. Low battery  buzzing artifact in video -Gone!

5. You only  need one Standard USB Data cable for charging and data exchange with your  computer. You don’t need another special charging cable to record videos  while charging. Just one cable is OK.

6. It supports  audio volume control, and you can even get it mute to save battery and helps  to increase the recording time when the audio is not needed, it can be set  by TXT config tool.

7. It supports  optional Loop Recording, it can be set by TXT config tool.

8. You can set  the date and time (white much smaller on the lower left corner), and toggle  the date/time stamp on or off, by TXT config tool.

9. Sometimes  you may don’t want 720P recording to save battery and memory card capacity,  now you can toggle video output frame size from 1280x720 30fps (default), to  848x480 30fps, or 640x480 30fps.

10. Optional  AVI output: we also have another firmware option available which will output  .AVI file format, using the same H.264 codec, and it offers seamless  recording (there is no lost video between clips). If you need it, please  send a message to us, and we will send it to you by email.

11. And more.  Please find more details in the PDF manual. And of course on RC Forum Tom  Frank’s great #16 thread, you will find lots of helpful information there.

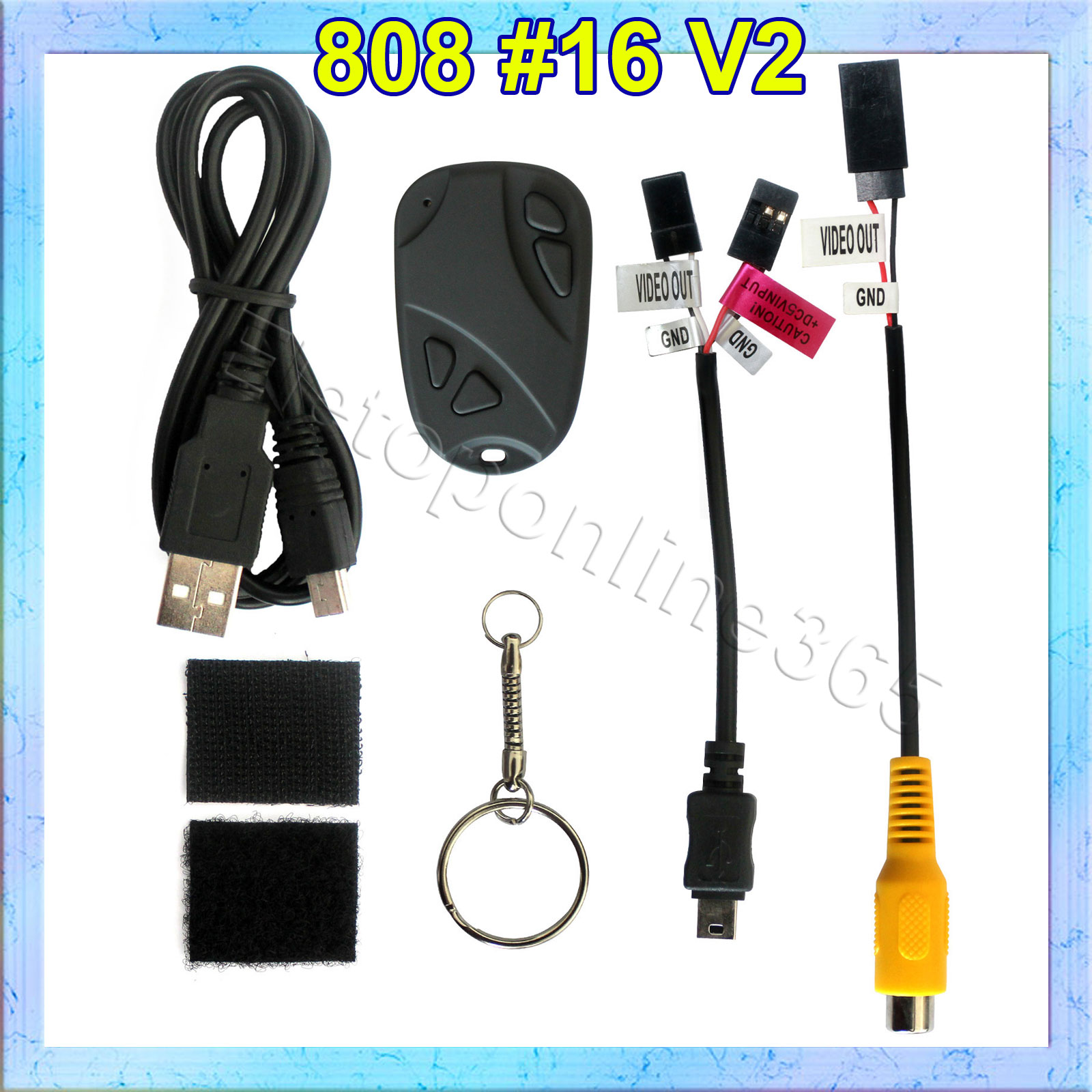

Package included

• 1X 808 #16 HD  Car key Micro camera This package will use a new lens  (we call it Lens B). With IR filter at front, the lens itself will look a  little red. It got around 13% wider angle of view than the original one  (Lens A).
• 1X USB cable
• 1 pair  Velcro
• 1 pair of Video Output cable (see photo).
  　

Note:

There  is no printed manual for this item, the PDF manual (in English) will be sent to  your email address

The  item will be packaged in bubbled bags for protection during transportation,  there is no retail box.
