MSD 92-95 Honda Civic 6A Ignition External Coil Kit

Brand new Ignition Kit for 1992-1995 Honda Civic EX DX LX CX Si 1.5L & 1.6L SOHC Engines

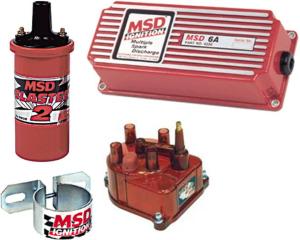

Includes Ignition, Coil & Bracket, Cap, Coil wire:





MSD 6AThe MSD 6A is the base model of the capacitive discharge multiple spark 6 Series design. Whether you have a powerful street machine, hard working truck or trick street rod, the powerful multiple sparks of the MSD 6A will ensure complete combustion. Benefits such as quicker ET's, easier starting, reduced plug fouling, more power and even increased fuel economy can be expected with the 6A's high energy multiple sparks.Like all of the MSD 6 Series Ignitions, the 6A will work with virtually any vehicle as long as it has a 12-18 volt electrical system. It can be triggered using breaker points, a magnetic pickup or the output of an electronic amplifier. All necessary parts and wiring instructions are included.



MSD Blaster 2 Coil If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6 or 7, the Blaster Coil line is the right choice. All of the Blaster Coils are designed for improved spark output!Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil filled metal canister. The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark.There are several versions of the Blaster Coil available. All of them have the same internal specifications, but have different housings or components. Each Blaster Coil can be used with a stock ignition, Blaster Ignition, MSD 5, 6 or 7 Ignition Control. Most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application.   Output Voltage           45,000 Volts Maximum Operating Voltage      12 VDC Primary Resistance      0.7 Ohms Secondary Resistance 4.7K Ohms Turns Ratio                 100:1



Coil BracketTo mount your new Blaster Coil, MSD offers a coil bracket. The Bracket is designed to mount to a fender well or firewall. It features a bolt and nut to secure the coil for a durable and good looking mount.



Red Power CapsNot only will these new Honda Caps dress up your engine compartment, but they also provide a coil tower to accept the higher spark of an external performance coil. Each cap is supplied with an 8.5mm Super Conductor Coil Wire.
