Hantek 100Mhz Digital Storage Oscilloscope DSO5102B

See original listing
Hantek-100Mhz-Digital-Storage-Oscilloscope-DSO5102B
Item Sold
Item condition:
New
Ended:
Jun 28, 2012 06:34:18 PDT
Price:
US $399.00
[
History:
14 sold
]
Shipping:
Calculate Varies based on location and shipping method
Item location:
Mesa, Arizona, United States
Seller:

Description

Item number:
380415923374
Seller assumes all responsibility for this listing.

Item specifics

Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitions- opens in a new window or tab ... Read moreabout the condition
Brand: Hantek
Bandwidth: 100MHz - 349MHz Model: DSO5102B
Channels: 2 MPN: DSO5102B
Sample Rate: 1GSa/s - 1.9GSa/s Type: Digital

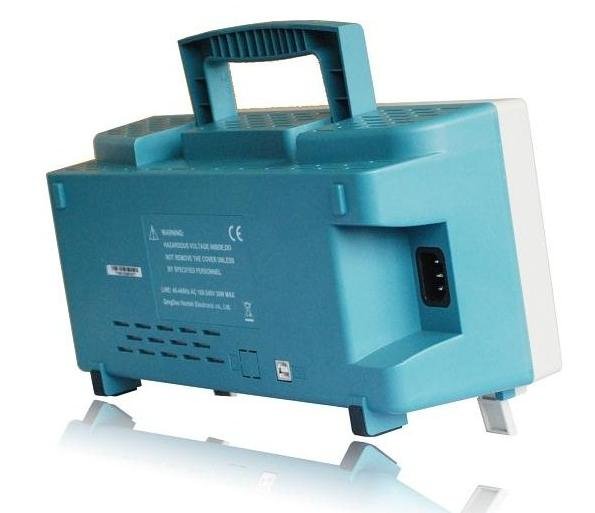

The Hantek DSO5102B Digital Storage Oscilloscope is a 100MHz DSO that provides real-time sample rates up to 1GSa/s and equivalent sample rates up to 25GSa/s. In addition, it has 1M memory depth for better observation of waveform details. The 7 inch color TFT 16 color LCD Display with Windows-style interface and menus provide easy operation. The unit is light enough and small enough to easily be portable and includes built in FFT function.

This 100 Mhz Digital Storage Oscilloscope includes 2 passive probes that may be switched between 1:1 & 10:1 input ratios. Also includes a USA style power cord, USB cable and a CD with the manual and software used to interface with a Windows based personal computer.

Abundant menu information and easy-to-use buttons give you plenty of measurement information:
  • The multifunctional knobs and the powerful shortcut keys help save time during operation.
  • The Autoset function lets you detect sine and square waves automatically.
  • The Probe Check Wizard guides you to adjust the probe compensation and set the Probe option attenuation factor.
  • The DSO5202B provides three help methods (context-sensitive, hyperlinks, and an index).
  • You can quickly master all functions of the DSO5102B to greatly improve your efficiency in production and development.
Features of Digital Storage Oscilloscope:
  • 100 MHz bandwidth
  • 1GSa/s Real Time sample rate
  • Large (7.0-inch) color display,WVGA(800x480)
  • Record length up to 1M
  • Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
  • USB host and device connectivity, standard
  • Multiple automatic measurements
  • Four math functions, including FFTs standard
  • Provides software for PC real-time analysis

Model
DSO5102B
Bandwidth
100MHz
Real-time Sample Rate
1GSa/s
Equivalent Sample Rate
25GSa/s
Record Length(Sample Points)
Single-channel: Maximum 1M; Dual-channel:Maximum 512K (4K,16K,40K optional)
SEC/DIV Range
4nS/div-40S/div (in a 2, 4, 8 sequence)
Delay Time Accuracy
500ps
Vertical
A/D Converter
8-bit resolution, each channel sampled simultaneously
VOLTS/DIV Range
2mV/div~5V/div at input BNC
Position Range
±50V(5V/div),±40V(2V/div~500mV/div),2V(200mV/div~50mV/div)±400mV(20mV/div~2mV/div)
Bandwidth Limit
20MHz
Rise Time at BNC
≤1.7ns
≤3.5ns
≤5.8ns
DC Gain Accuracy
±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div
±3% for Sample or Average acquisition mode, 5V/div to 10mV/div
Trigger
Trigger Sensitivity
(Edge Trigger Type)
DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full
EXT(Typical) 200mV from DC to 40MHz
EXT/5(Typical) 1V from DC to 40MHz
AC: Attenuates signals below 10Hz

HF Reject: Attenuates signals above 80kHz
LF Reject: Attenuates signals below 150kHz
Noise Reject: Reduces trigger sensitivity
Trigger Level Range
CH1,CH2: ±8 divisions from center of screen
EXT: ±1.2V EXT/5: ±6V
Trigger Level Accuracy,
typical (Accuracy is for signals having rise and fall times ≥20ns)
CH1,CH2: ±(0.3div×V/div) (within ±4 divisions from center of screen)
EXT: ±(6% of setting + 40mV)
EXT/5: ±(6% of setting + 200mV)
Holdoff Range
100ns-10s
Trigger Type
Edge
Trigger on the rising or falling edge
Pulse Width
Trigger (when >,<,=,≠) on positive or negative pulses
Pulse Width Range: 20ns-10s
Video
Trigger on an NTSC, PAL, or SECAM standard video signal
Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)
Slope
Trigger (when >,<,=,≠) on a positive or negative slope
Set Time: 20ns–10s
Overtime
from the rising or falling edge
Set Time: 20-10s
Alternate
Internal trigger on edge, pulse width, video or slope
Measurement
Cursors
Manual: The difference between voltage cursors; the difference between time cursors ; calculated by Hz.
Tracing: The voltage and time at a waveform point
Automatic
Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width
Display
Type
Right angle 7"TFT 16-digit color LCD
Resolution
800*480 dots
Contrast
16 gears, with the progress bar to show adjustment
Interface
USB host and USB slave
Power Supply
Voltage
100-120VACRMS(±10%),45Hz to 440Hz,CAT II
120-240VACRMS(±10%),45Hz to 66Hz,CAT II
Power
<30W
Fuse
2A, T rating, 250V
Mechanical
Size
Length: 313mm Width: 108mm Height: 142mm
Weight
2.08KG (exclusive of packing and accessories)

Probes

USB Cable

Power Cord

Software:
Operating system: Windows NT, Windows 2000, Windows XP ,VISTA, Windows 7
Sample Scope Screens

USB Drivers DSO5000B Series Digital Storage Oscilloscope Drivers
