Barebones Mini ITX Carputer 4Gb DDR3, M2-ATX, Intel DH61DL, LGA 1155 Core i3-i7

Our latest low power high performance Carputer is based on the 2nd Generation Sandy Bridge LGA 1155 platform and features an Intel DH61DL Motherboard, 4Gb of DDR3 RAM, Black Box Mobile chassis with added 40mm fan panel for extra cooling, and programmable 160W automotive grade power supply with auto start and shutdown. This barebones model doesn't include any CPU, hard drive or wifi/bluetooth allowing you to customize your system to your specifications. The PC includes a detailed build sheet, motherboard drivers, comes comes fully assembled and pre-tested. The case is compatible with stock Intel heat sink/fan combinations, no low profile heat sink is required.

Features

Detailed Specifications:

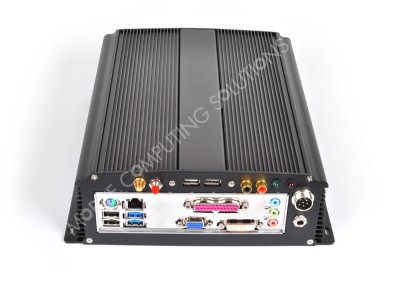

Case	Black Box Mobile Extruded Anodized Aluminum Mini ITX Chassis 10" x 9.25" x 3.125"/254mm x 235mm x 80mm 1x 50 x 50 x 10mm fan 6500RPM 32dB for ventilation
Processor	Not Included For a complete list of compatible CPU's click here 2nd Generation Sandy Bridge LGA 1155 Intel Core i3 21xx Series Intel Core i5 24xx Series Intel Core i7 26xx Series Intel Pentium G6xx and G8xx Series Intel Zeon E-12xx Series
Graphics	Intel HD Graphics DirectX 9.0c and OpenGL 1.4 Compliant 3D Graphics Rendering enhancements
Audio	6-channel (5.1) audio subsystem with three analog audio outputs Composite/RCA Line Outputs
USB	6x USB 2.0 ports 2x USB 3.0 Ports
LAN	1x 10/100/1000 Mbps
BIOS	Intel BIOS 4mb flash memory
Rear Panel I/O	1x Ps2 for mouse or keyboard 1x VGA 1x DVI-D 1x Parallel Port 1x 10/100/1000 LAN 6x USB 2.0 ports 2x USB 3.0 Ports Composite/RCA Line Outputs 3x Audio: Line in, Line out, and Mic in
Monitoring and Management	Power Management (Supports S3 standby) Fan Speed Control Wake on USB Wake on LAN Wake on Keyboard Wake on Mouse
Hard Drive	Not Included Supports 1x 2.5" IDE or SATA drive
Memory	4Gb 1333MHz DDR3 Supports up to 8GB of RAM
M2-ATX Smart Power Supply	Connects directly to the battery, Voltage regulation, Automatic Start-up more info
Also Included	6 pin locking metal power harness Users guide and wiring diagram Detailed system build sheet LCD monitor power cable Hard drive mounting screws and bushings
Compatible Operating Systems	All versions of Windows XP, Vista, 7, and  Embedded XP/7
Operating temperature	0°C - 50°C
Warranty	6 months parts and labor mo-co-so

Added Bonus:

Every computer now comes with an M2-ATX power supply adapter that will allow you, with an AC to DC power adapter, to power the PC in your house to load software, add content, and adjust various settings prior to installing the PC in your car.  The unique design also allows you to simulate turning the car on or off to test your shutdown and restart settings.

Optional Upgrades



Hard Drive Options
	Capicity	Price
	250GB Western Digital 2.5" SATA II HDD	$65
	500GB Western Digital 2.5" SATA II HDD	$80
	1TB Western Digital 2.5" SATA II HDD	$105
	40GB Intel Solid State SATA II HDD	$97
	64GB Crucial M4 Solid State SATA III	$100
	80GB Intel Solid State SATA II HDD	$180
	128GB Crucial M4 Solid State SATA III HDD	$180
	256GB Crucial M4 Solid State SATA III HDD	$325



2nd Generation Sandy Bridge LGA 1155 CPU's
	Core i3 2120-  3.30Ghz Dual Cores 3Mb L2 Cache 65w	$130
	Core i3 2120T- 2.6Ghz Dual Cores 3Mb L2 Cache  35w (Low Power)	$150
	Core i5 2400S-  2.5Ghz Quad Core 6Mb L2 Cache 65w	$210



DDR3 1333Mhz RAM Upgrade
	8Gb (2x 4Gb) 2Gb Crucial 1333Mhz DDR3 SDRAM Module	$40



Chassis Upgrades
	Description	Price
	5m/16.25' 6 pin power harness with inline fuse	$20
	5m/16' Extended Power LED and Reset Button	$15



Wifi/Bluetooth Cards and Cables
	Description	Price
	Intel Centrino 1000 B/G/N Band 802.11 Supports Dual Antennas for increased range and transfer speeds	$19
	Intel Centrino 1030 B/G/N Band 802.11 + Bluetooth Dual Antennas required for Bluetooth	$23
	3DSP Combo Card B/G Band 802.11 Wifi + Bluetooth Centrafuse compatible (No other Mini PCIe combo card has been certified by the Centrafuse team) Dual antennas not required for Bluetooth (but it does help to increase the range)	$25
	Antenna Kit 20cm/8" Ipex to RPSMA Antenna pigtail 5dBi RPSMA Antenna with tilt and swivel	$11
	Antenna Kit with Extension 20cm/8" Ipex to RPSMA Antenna pigtail 5dBi RPSMA Antenna with tilt and swivel 2m/6' RPSMA Extension	$17



Software
Description	Price
Centrafuse Auto Standard 4.0	$65.00
Centrafuse Auto North America 4.0	$125.00
Centrafuse Auto North America 4.0+ USB SIRF III GPS Receiver	$160.00
Centrafuse Auto Europe 4.0	$160.00
Windows 7 Home Basic Pre Installed Includes COA and Disk 32 or 64 Bit	$100.00
Windows 7 Professional Pre Installed Includes COA and Disk Disk 32 or 64 Bit	$160.00
Windows 7 Ultimate Pre Installed Includes COA and Disk Disk 32 or 64 Bit	$180.00



Other Hardware
	Description	Price
	110-240v AC to 12v/6.6A DC Switching Power Supply Use it to power your PC on the bench or in the house Works with the M1/2/3-ATX Adapter	$15.00
	USB Sirf III GPS Receiver	$45.00
	USB Slot Loading DVD Combo Drive	$55.00
	USB Slot Loading DVD R/RW Drive	$70.00
